Platform Load Cells

35.00 - 45.00 USD ($)/Piece

Product Details:

  • Weight 7 Kilograms (kg)
  • Color Electroless Nickle Plated
  • Classification Class 3

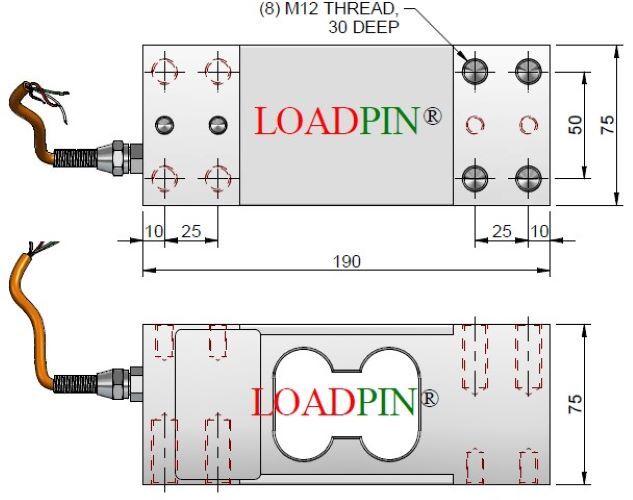

  • Dimension (L*W*H) 75x75x190 Millimeter (mm)
  • Operate Method Wheatstone Bridge Principle
  • Voltage 10 Volt (v)
  • Material Alloy Tool Steel
  • Click to View more
X

Platform Load Cells Price And Quantity

  • 35.00 - 45.00 USD ($)/Piece
  • 1 Piece

Platform Load Cells Product Specifications

  • 0 to 50 Celsius (oC)
  • 75x75x190 Millimeter (mm)
  • 10 VDC Volt (V)
  • Class 3
  • Compression - Point Load
  • 0 to 50 Celsius (oC)
  • 0.05 %
  • 7 Kilograms (kg)
  • Electroless Nickle Plated
  • Resistance Sensor
  • Industrial Automation, Weighing, Testing and Measuring.
  • -10 to 70 Celsius (oC)
  • Single Point Load
  • 500 to 3000 Kgf
  • Alloy Tool Steel
  • 2mV/V
  • Wheatstone Bridge Principle
  • Analog Sensor
  • 10 Volt (v)

Platform Load Cells Trade Information

  • NhavaSheva
  • Western Union Cash Advance (CA) Cash in Advance (CID) Cheque
  • 200 Piece Per Week
  • 30 Days
  • Packed in Corrugated Boxes : 4pcs / Box
  • Western Europe Australia North America Eastern Europe Central America Middle East South America Asia Africa
  • Chandigarh Himachal Pradesh Andaman and Nicobar Islands Uttarakhand Daman and Diu Dadra and Nagar Haveli Lakshadweep Nagaland Jharkhand Madhya Pradesh Punjab Tamil Nadu Goa Mizoram Telangana Bihar Central India West India Pondicherry Gujarat West Bengal Assam Arunachal Pradesh Kerala Jammu and Kashmir South India Meghalaya Manipur Delhi Tripura East India Sikkim Odisha Maharashtra Andhra Pradesh Rajasthan Haryana Uttar Pradesh Karnataka North India Chhattisgarh All India
  • Protection as per IP 65

Product Description

Platform Load Cells

We are offering an exclusive gamut of optimum utility Platform Load Cells. It is is a high performance, high capacity single point load cell,designed for direct mounting of large weigh platforms. The rugged construction offers high immunity to side forces making suitable for a wide range of weighing applications, including bench scales, check weighing and process weighing. Further, Platform Load Cells are made available in a gradation of technical specifications at unbeatable prices.

Applications:

  • Large platform scales

  • Hanging scales

  • Check weighing

    Features:

  • Capacities: 500-3000 KG

  • Low profile for plate form scale

  • Electroless nickel plated alloy steel construction

  • IP65 protection

  • Complete environmental protection

  • Platform size 1000 x 1000 mm

SPECIFICATION

 STANDARD CAPACITIES
:500,1000,1500,2000,2500,3000.
EXCITATION VOLTAGE  :10VDC TO 15VDC
RATED OUTPUT
:2.0 mv/v
INPUT RESISTANCE
:392 +- 10 Ohms
OUTPUT RESISTANCE
:350 +- 3.0 Ohms
CREEP (30 MINUTES)
:<+- 0.03% Fso
ZERO BALANCE
:+-1.0% Fso
NON-REPEATABILITY
:<+-0.01% Fso
HYSTERESIS
:<+-0.02% Fso
NON-LINEARITY
:<+-0.25% Fso
SAFE OVER LOAD
:150% Of Rated Capacity
ULTIMATE OVER LOAD
:250% Of Rated Capacity
ALLOWABLE SIDE LOAD
:50% Of Rated Capacity
TEMPERATURE EFFECT ON O.P.
:<0.0015% FsooC
TEMPERATURE EFFECT ON ZERO
:<0.0020% FsooC
ENVIRONMENTAL PROTECTION
:IP65

Published specifications & dimensions are subject to change without notice.

For more details, feel free to contact us.
