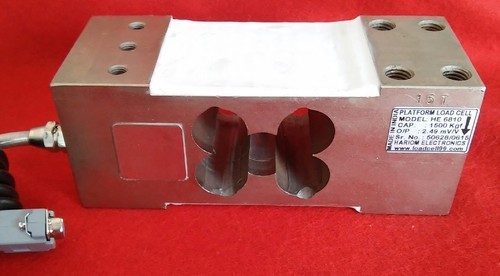

Platform Scale Load Cell

Platform Scale Load Cell
Platform Scale Load Cell
Send Inquiry
Product Code : HE 6810
Brand Name : HARIOM
Product Description

PLATFORM LOAD CELL

Paying optimum attention to the diverse requirements of our esteemed clients, we are offering them an excellent range of Platform Scale Load Cells used in parts counting scales, check weighing, medical testing, and wind tunnel testing. Procured from world-class vendors, these products are sufficiently tested at our base to ensure their high performance and a maximum operational life. These load cells have excellent off center loading compensation and can handle significant side loads. Moreover, these Low Capacity Platform Scale Load Cells are offered to our esteemed clients in a gamut of capacity ranges and specifications at competitive prices.

Features:

  • Mechanically robust design
  • Excellent resolution and accuracy for low capacities
  • Small size and low profile for building small scales
  • Rugged and reliable
  • Capacities: 500-3000 KG
  • Low profile for plateform scale
  • Electroless nickel plated alloy steel construction.
  • IP65 protection.
  • Complete environmental protection.
  • Platform size 1000 x 1000 mm

SPECIFICATION

 STANDARD CAPACITIES
:500,1000,1500,2000,2500,3000.
EXCITATION VOLTAGE  :10VDC TO 15VDC
RATED OUTPUT
:2.0 mv/v
INPUT RESISTANCE
:392 +- 10 Ohms
OUTPUT RESISTANCE
:350 +- 3.0 Ohms
CREEP (30 MINUTES)
:<+- 0.03% Fso
ZERO BALANCE
:+-1.0% Fso
NON-REPEATABILITY
:<+-0.01% Fso
HYSTERESIS
:<+-0.02% Fso
NON-LINEARITY
:<+-0.25% Fso
SAFE OVER LOAD
:150% Of Rated Capacity
ULTIMATE OVER LOAD
:250% Of Rated Capacity
ALLOWABLE SIDE LOAD
:50% Of Rated Capacity
TEMPERATURE EFFECT ON O.P.
:<0.0015% FsooC
TEMPERATURE EFFECT ON ZERO
:<0.0020% FsooC
ENVIRONMENTAL PROTECTION
:IP65

Published specifications & dimensions are subject to change without notice.

For more details, feel free to contact us.
