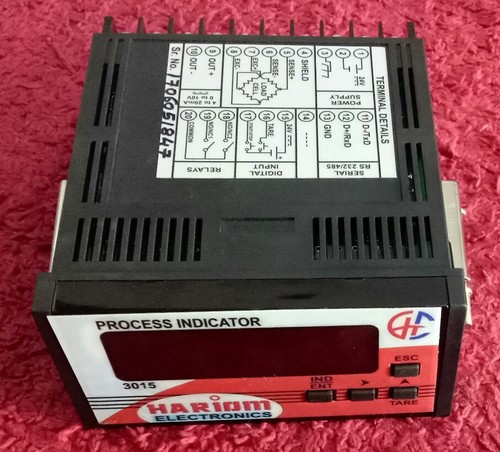

Load Indicator

Load Indicator
Load Indicator
Product Code : Weigh Indicator 3016
Brand Name : HARIOM
Product Description

Load Indicator



Leveraging on our vast industry experience and knowledge, we have engaged in manufacturing and supplying high quality Load Indicator. This indicator is a micro controller based Indicator unit and is highly versatile, accurate and different from the conventional indicators. This product displays analog signal (mV) input from the load cell into engineering values. With the help of the keypad and display, unit allows to set and modify various configuration parameters and calibration. The demanded Load Indicator is suited for applications which require advanced weighing routines and high connectivity. The indicator is precisely configured to each installation with its own measurement criteria, programmed routines, control devices, sensors and peripherals.

Key Features:

  •  Highly versatile, accurate
  • Standardized EDP command sets
  •  Water-resistant enclosure
  • Configurable analog to digital measurement rate
  •  Universal mounting stand




WEIGH INDICATOR 3016



  • This is a micro controller based Indicator unit.
  • It is highly versatile, accurate and different from the conventional indicators.
  • It displays analog signal (mV) input form the load cell into engineering values.
  • With the help of the keypad and display, unit allows to set and modify various configuration parameters and calibration.

 GENERAL SPECIFICATIONS OF THE UNIT ARE AS FOLLOWS.



On board 24-bit ADC is provided for Digitizing Analog Input.

Filtering : Analog & Digital

Sampling speed : 15 readings/second

Power Supply : 24 VDC

Input : 4-wire Load cell, Up to Four Single Load cell with 300 Ohms Resistor

Remote input : for GROSS/NET, TARE and Zero functions

Display : 6-digit 7-segment 0.56" Red LED

Decimal position : Selectable.

Key board : Four keys membrane like

Programmable Parameters :

Decimal Point,

Capacity,

Display Resolution,

Grad,

Zero Track Band,

Zero Range

Configuration Data are stored in serial NVRAM, Battery back up not required

Calibration through software (Offset: ' Z '& Span: ' S ' stored in NVRAM)

Optional : Serial Port for communication with the remote display/Printer/Computer using RS-485/RS-232

Outputs : One Digital output (opto isolator)

Retransmission : 4-20 mA/0-10V Proportional indicated weight

Enclosure : Plastic, General Purpose, Panel Mounting type



Dimension : Outer: 96 mm (W) x 48 mm (H) x 110 mm (D)

Cut-out: 92 mm (W) x 44 mm (H)



For more details contact us @ +91 265 2651731
