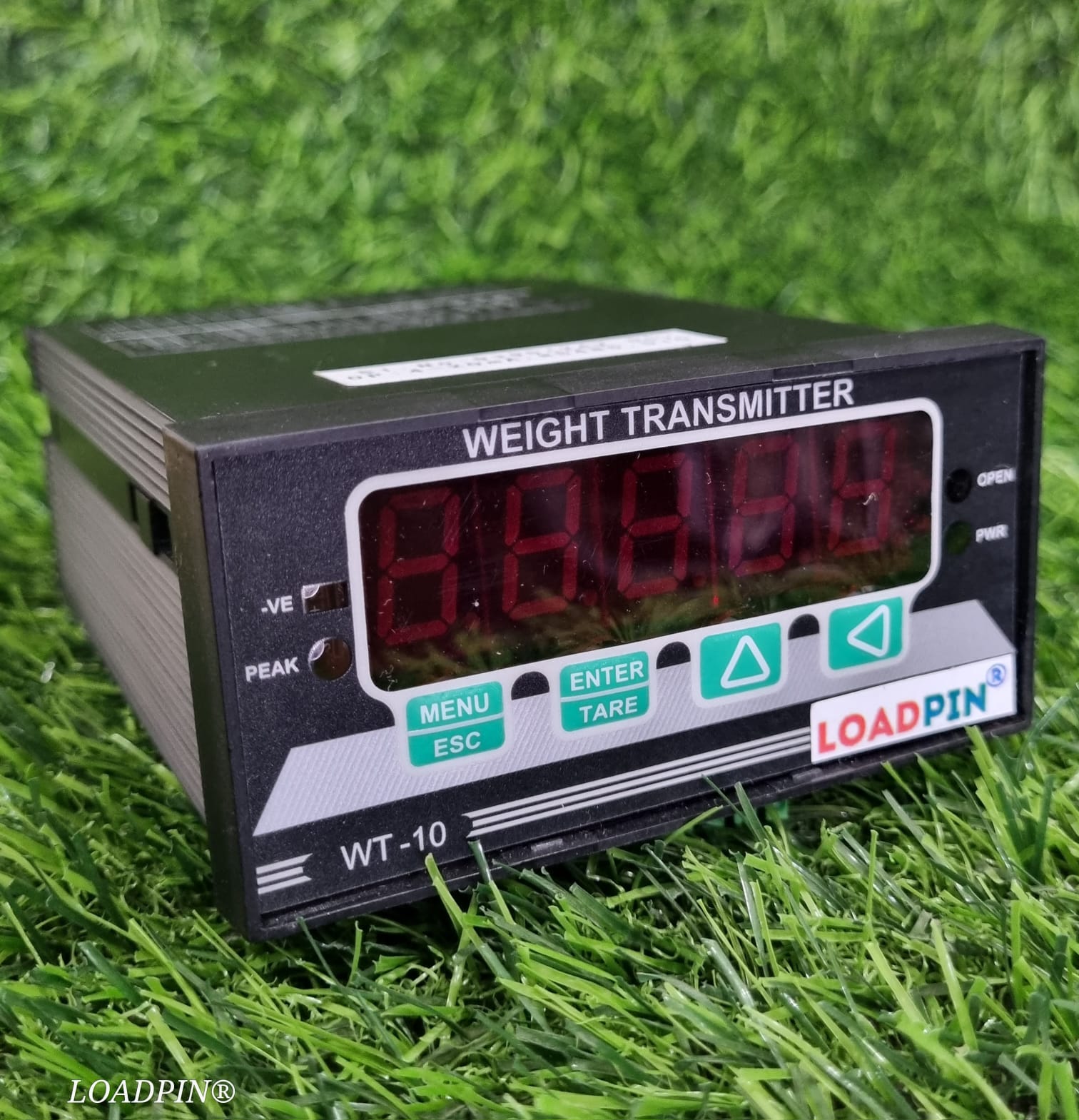

Universal Weight Indicator

Product Description

UNIVERSAL Weight Indicator

Key Features:

• Easy installation
• Equipped with a position meter for monitoring operating status trends
• Water-resistant enclosure
• Capable of high-speed sampling
• Market leading rates

LOAD TRANSMITTER

SPECIFICATIONS of PROCESS INDICATOR - LOAD TRANSMITTER:

01. PROCESS INDICATOR -- MODEL 3016
Retransmission: 4-20 mA (16-bit DAC)

• Input: 4-wire Load cell,

• Retransmission:

• 4-20 mA Proportional to the Applied Load / Force

• 0-10V Proportional to the Applied Load / Force
  (Zero & Full scale programmable for Re-transmission)
• Programmable Retransmission corresponding to applied Load / Force.
• Enclosure: Panel mounting, Size: 96 x 48 x 120 mm
• Display range: 0 to 199999
• Resolution: 20000 counts
• Programmable Parameters:
  • Decimal Point, Capacity, Display Resolution, Grad, Zero Track Band, Zero Range
• Configuration Data are stored in serial NVRAM, Battery back up not required
• Calibration through software (Offset:& Span: stored in NVRAM)
• Serial Port for communication with the remote display/Printer/Computer using RS-485.

Specification

Model Name/Number	3016
Input	24VDC
Display Type	Digital
Material	ABS
Size	96x48
Type	Process Indicator
Color	Black
Accuracy	0.05%
Display Shape	Rectangle LED
Hysteresis	0.01%
Number Of Digits	6
Operating Temperature	1050 Degree Centigrate
Power Required	24VDC
Range	99999 counts
Response Time	ADJUSTABLE
Data Logging	OPTIONAL-CAN BE AVAILABLE
Division	1
Load Excitation	5VDC
Portable	YES
Usage/Application	INDUSTRIAL
Brand	HARIOM ELECTRONICS
Country of Origin	Made in India

Precision and Versatility in Every Measurement

Designed for load cell-based applications, this Universal Weight Indicator ensures reliable accuracy of up to 0.5%. Its compact form fits easily into various industrial setups, all while operating optimally within a broad temperature span. The user-friendly digital display provides clear, detailed readings even in demanding settings.


Reliable and Energy-Efficient Performance

Running on a standard 24V supply, this indicator is engineered for low energy consumption without compromising on output. Its robust construction and comprehensive warranty provide long-term value and peace of mind to manufacturers, exporters, and service providers alike.
