Batch Controller

Batch Controller

Product Details:

  • Supply Ability : 5000 Piece Per Month
1000 onwards INR/Piece

Price And Quantity

  • 1 Piece
  • 1000 onwards INR/Piece

Trade Information

  • 5000 Piece Per Month
  • 30-45 Days

Product Description

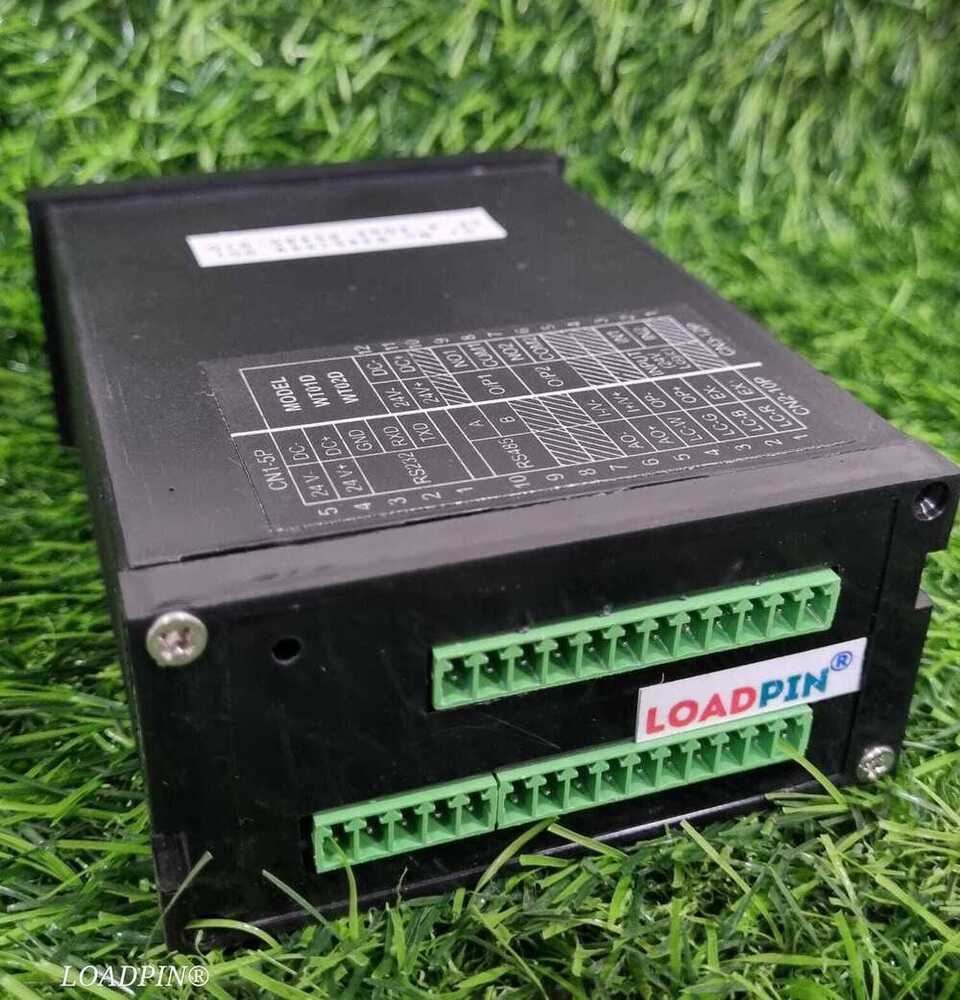

We are offering best quality Batch Controller equipment which is compact & modern in working. This is widely used in mobile batch mix plant & various other applications. It is equipped with 128 x 64 Graphics LCD display with backlit display, 23 keys keyboards, loadcell sensor and alarm to name a few. The instrument is manufactured with rugged design with latest technology.

  • This is a Micro-controller based batch control unit.
  • It is useful for Mobile batch mix plant applications.
  • It can control feeding of multiple components (up to Seven) with the help of single load cell input
  • as per pre programmed parameters.

  • Operating Supply: 230VAC
  • Display: 128 x 64 Graphics LCD display with backlit
  • Keyboard: 23 keys membrane Keypad
  • Input: Loadcell Sensor
  • Excitation Voltage: 10VDC
  • ADC: 24-bit ADC used for digitization
  • Field Programmable parameters:
  • Set points/Offset of all component, Filter, Various timings for batching sequence
  • Control Outputs: Total 12 relay outputs
    • Seven relays to control Feeding of components
    • Alarm, Gate On/Off
    • Status: Batch Over, Batch Ready
  • Digital Inputs: 8 digital inputs to read status & remote commands
  • Calibration: Offset & Span calibration through software using keypad
  • Report: Batch wise online & offline report printing
  • Serial Interface: RS-232/RS-485 (for Printer/Computer)
  • Mechanical Data: Mounting: Panel mounting
    • Cutout size: 228 mm x 133.5 mm
    • Outer dimension: 269 mm (W) x 133.5 mm x 190 mm (Depth)
    • Enclosure: Normal
