Brick Type Load Cell

Name: Brick Type Load Cell
Brand: HARIOM ELECTRONICS
Price: 32.0 USD
Availability: InStock

32.0 USD ($)/Piece

Get a Price/Quote

Product Details:

Dimension (L*W*H) 190 x 75 x 75 Millimeter (mm)
Material Alloy Tool Steel
Application Reversible Drum Mixers
Usage Weighing & Construction
Color Electroless Nickle Plated Surface
Classification Class III
Product Type Industrial
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Brick Type Load Cell Price And Quantity

Minimum Order Quantity 4 Piece
Price 32.0 USD ($)/Piece

Brick Type Load Cell Product Specifications

Storage Temperature 35 Celsius (oC)
Capacity 500 to 3000 Kg Kg/hr
Weight 8 Kilograms (kg)
Classification Class III
Product Type Industrial
Usage Weighing & Construction
Color Electroless Nickle Plated Surface
Operating Voltage 5 to 12 Volt (V)
Output Voltage 2.0 Milli Volts Volt (V)
Application Reversible Drum Mixers
Material Alloy Tool Steel
Dimension (L*W*H) 190 x 75 x 75 Millimeter (mm)
Output Analog Sensor
Compensated Temperature 0 to 50 Celsius (oC)
Type Single Point Low Profile
Accuracy 0.5 %
Operating Temperature -5 to 60 Celsius (oC)

Brick Type Load Cell Trade Information

FOB Port Ex Works
Supply Ability 250 Piece Per Week
Delivery Time 45 Days
Sample Available Yes
Sample Policy Contact us for information regarding our sample policy
Packaging Details Corrugated Box Packaging.
Main Domestic Market Dadra and Nagar Haveli, Himachal Pradesh, Andaman and Nicobar Islands, Nagaland, Uttarakhand, Daman and Diu, Lakshadweep, Delhi, Gujarat, Madhya Pradesh, Chandigarh, Tripura, Rajasthan, Maharashtra, North India, Pondicherry, Jharkhand, South India, Telangana, Haryana, Manipur, Assam, Goa, Tamil Nadu, Mizoram, Arunachal Pradesh, East India, Sikkim, West Bengal, Jammu and Kashmir, Meghalaya, West India, Karnataka, Kerala, Uttar Pradesh, Punjab, Bihar, Andhra Pradesh, Central India, Odisha, Chhattisgarh, All India

Product Description

LOADPIN

PLATFORM LOAD CELL

Applications:

Large platform scales

Steel weighers
Silo / tank weighers
Vessel weighing

Key Features:

Single point capability for platform scale
Compact, light weight & economical
Custom built design available on request
Supports the pan size 1000 X 1000 (Mm)
Moisture proof sealing
Electro Less Nickle Plated Alloy Tool Steel Construction.
Much more competitive prices
Model HE 6810 Is A Strain Gage Based Bending Beam Load Cell.
Ideal For Precision Single Point Platform Scale Applications.
It Is Designed For Low Eccentric Load Sensitivity.
This Supports Large Platform Size Of 1 Mtr. X 1 Mtr.

Custom Built Design Available On Request.

Specification

Mixer Type	REVERSIBLE DRUM MIXERS
Load Direction	COMPRESSION TYPE
Output Resistance	350 OHMS +/- 10 OHMS
Material	HEAT TREATED ALLOY TOOL STEEL
Size	75 X 75 X 190 MM
Brand	HARIOM ELECTRONICS
Color	ELECTROLESS NICKLE PLATED
Excitation Voltage	10 VDC
Model Number	HE 6810
Type of the drum mixer	Reverse Drum Mixer
Power Source	From Display Unit
Usage/Application	Reversible Drum Mixers
Nominal Sensitivity	20 MILLI VOLTS @ 10 VOLT DC

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Weigh Load Cell' category

Jumbo Load Cell Minimum Order Quantity : 1 Product Type : Platform Load Cell Color : Electroless Nickle Plated Material : Alloy Tool Steel Weighing Scale Type : Other Power Supply : 10VDC Weight : 8 Kilograms (kg) Warranty : 1 YEAR Load : 1500KG Kilograms (kg) Capacity Range : 5003000 Kilograms (kg) Usage : Monitoring Force Accuracy : 0.5 % Monitor Display : Analog Output : Analog Sensor Output Voltage : 2 mV per Volt Volt (V) Operating Voltage : 5 to 15 Volt (V) Storage Temperature : 30 Celsius (oC) Compensated Temperature : 0 to 50 Celsius (oC) Operating Temperature : 10 to 60 Celsius (oC) Dimension (L*W*H) : 190x75x75 Millimeter (mm) Classification : C3 Application : Weigh Sensing

Send Inquiry

Regular Load Cell Price : 2800.0 INR/Piece Minimum Order Quantity : 10 Product Type : Single Point Platform Color : Electroless Nickle Platied Material : MS Weighing Scale Type : Bench Scale Power Supply : 5 to 15 Volt DC Weight : 2.4 Kilograms (kg) Warranty : 1 YEAR Load : Compression Mode Kilograms (kg) Capacity Range : 1000 Kilograms (kg) Usage : Industrial Accuracy : 0.02 % Monitor Display : Analog Output : Analog Sensor Voltage : 110215 Volt (v) Operate Method : Manual Display Type : Analog Only Size : Rectangle

Send Inquiry

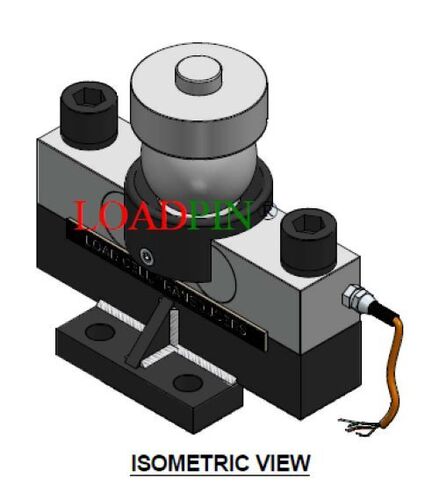

Ball Type Load Cell 30t Price : 8800 INR/Piece Minimum Order Quantity : 12 Product Type : Shear Beam Color : Matt Finish Material : Steel Weighing Scale Type : Weigh Beam Power Supply : 10VDC Weight : 13.5 Kilograms (kg) Warranty : 1 Year Load : 30 Metric Ton Capacity Range : 30 Metric Ton Usage : Industrial Accuracy : 0.02 % Monitor Display : Analog Output : Analog Sensor Voltage : 110215 Volt (v) Operate Method : Manual Display Type : Analog Only Size : As per Catalog
