With most advanced infrastructure, we are offering the finest quality assortment of Weigh Bridge Load Cell. These are manufactured using the best quality raw materials and are fully supported by advanced features like auto power on/off system, high over load capacity, high strain gauge based load cell. Offered load cells are used for weighing heavy load of truck and tractors. Made of a special steel alloy, it is very robust and totally protected from lightning and electrical surges. Our environmentally friendly Weigh Bridge Load Cell gives maximum satisfaction to our precious clients due to its various features at reasonable prices.
Features:

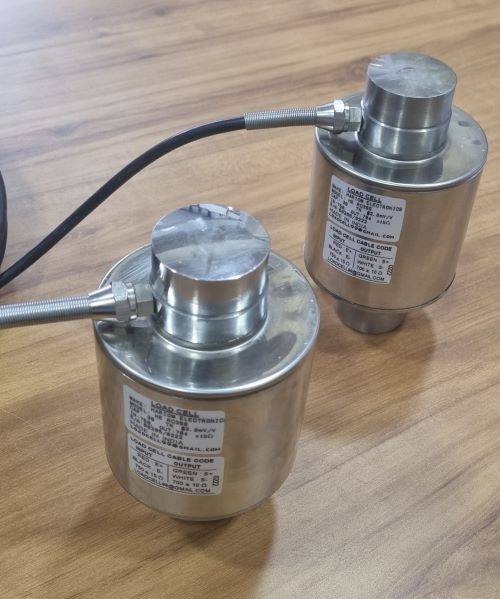

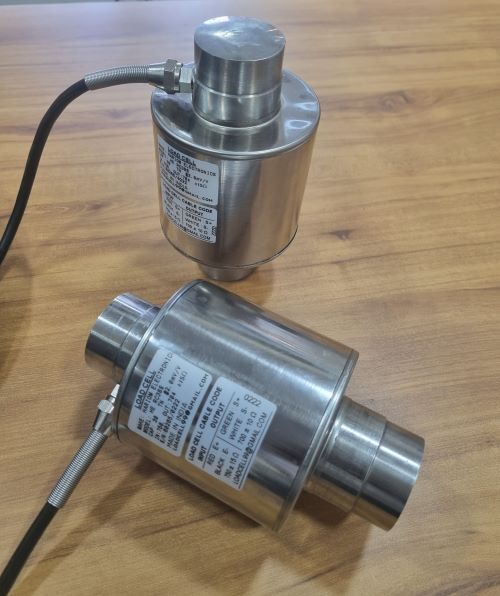

New, compression Load cell Model HE RC3.
Hariom Electronics, a well known Precision Load cells Manufacturing Company, have developed an ultimate Load Cell (Model HE RC3).
Easy to install in

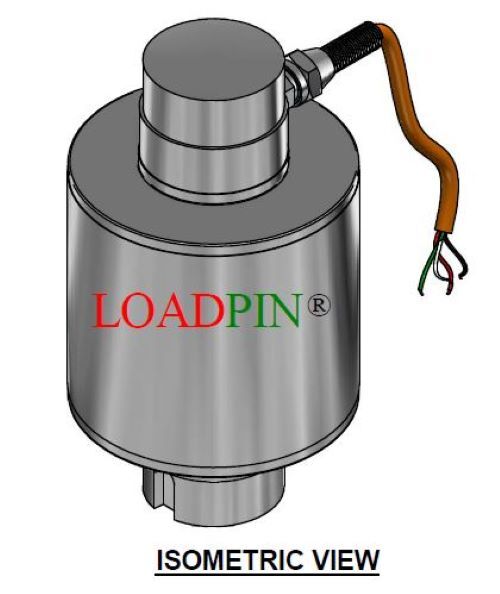

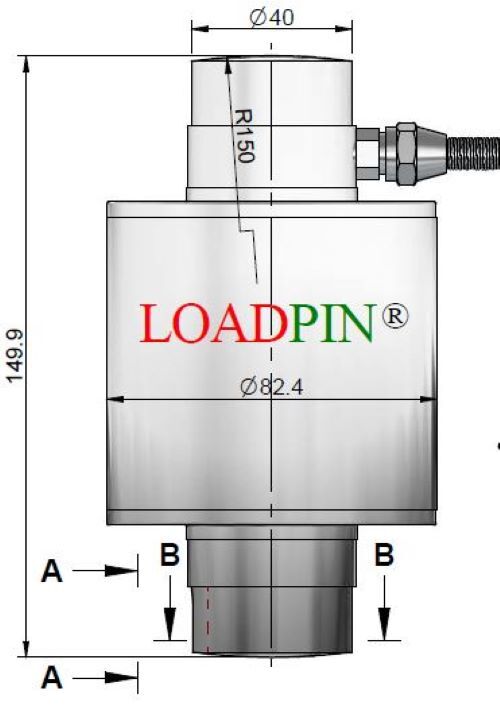

Column type Compression Rocker Pin Load cell built from Alloy Steel & also from Stainless Steel Materials.
Specification
Application | Hopper Scales |
Cable Length | 2-20 m |
Capacity | 30000 Kg |
Compensated Temperature Range | -10 to +40 Deg C |
Creep Error (30 minutes) | +/- 0.03% FS |
Features | Hermetically Sealed |
Ingress Protection | IP68 |
Insulation resistance at 50V DC | >= 1000 M Ohm |
Material | Stainless Steel |
Maximum Safe Overload | 150% FS |
Operating Temperature Range | -20 to +70 Deg C |
Recommended Excitation Voltage | 5 to 15V DC |
Temperature Effect on Output | +/-0.010% FS/DegC |
Temperature Effect on Zero | +/-0.020% FS/DegC |
Ultimate Safe Overload | 300% FS |
Zero balance | +/- 1% FS |
