LOAD PIN

Product Description

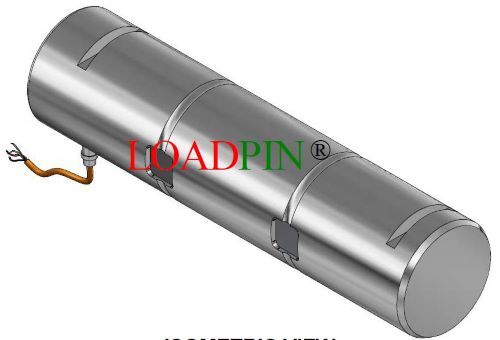

Load Measuring Pin

Load Measuring Pins are used to measure Load force and provide overload protection. The pins are mounted into machines in place of normal shafts and fitted with strain gauges, allowing them to produce a signal proportional to the measured Load. Load Pins are rugged with high resistance stainless steel and tight construction, designed specifically for use harsh industrial environments.

Specifications:

• For Overload detection and load measurement.....
• Admissible Overload : 150% of the Nominal Load
• Overload at Rupture : upto 500% of the Nominal Load
• Intensive to external mechanical and chemical effects.
• Ideal for use in hostile environments.
• Temperature-compensated transducer with strain guages in full bridge configuration.
• Simple installation for cost-saving solutions to measurement problems.
• High realiability for strict safety requirements.
• Many options may be added to the lower cost standard load pin for greater flexibility.




• Can be designed with special dimensions for adaptation to various construction conditions.

Applications Area:

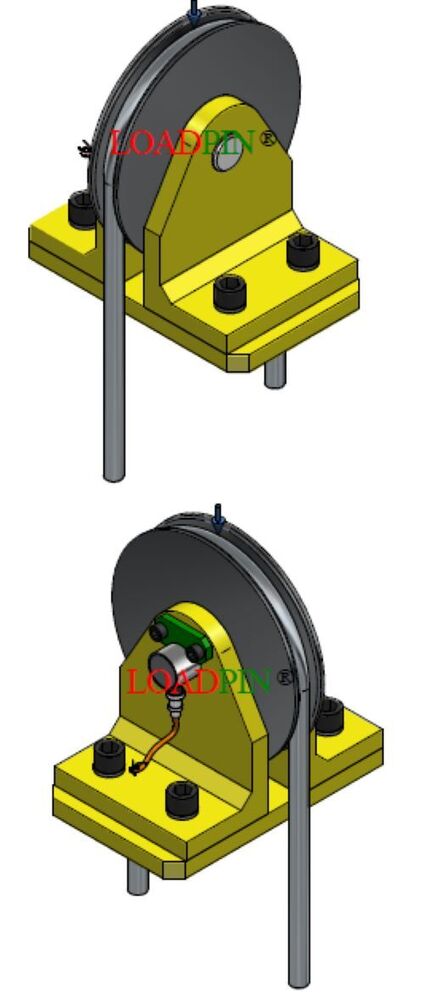

When forces acting on mechanical constructions are measure the additional equipment required can often can often be costly and difficult to install. Load pin offer an excellent solution since they act as a direct element in the assembly, replacing a non-instremented pin or shaft.

• Load measuring devices and overload protection on cranes.
• Hoisting gear.
• Elevator and Wrinches.
• and for measurement for regulation process in Industrial Installations and machinery production.
