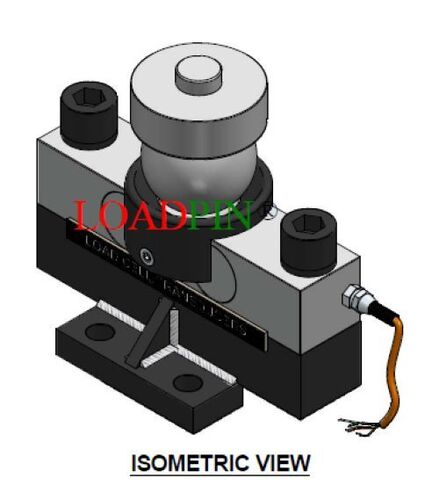

Compression Load Cell
Compression Load Cell
For meeting the diverse requirements of our clients, we are engaged in offering quality assured Compression Load Cell. Our whole range of cells is made of quality-tested raw materials and cutting-edge technology under the strict vigilance of quality controllers. It is hermetically sealed to provide better environmental protection hence widely recommended for tank, truck, track and hopper type industrial applications. The offered Compression Load Cell is made available to our valued customers in a series of models and technical specifications.
Key Features:
-
Multicolumn construction
-
High accuracy
-
Wide range of capabilities
-
Alloy tool steel construction for resistance against shock and overload.
-
Complete Environmental Protection
-
Competent prices.
- Capacities: 10 - 100 M.T.
- Low profile for tank, hooper, industrial weighing.
- Electroless nickel plated alloy steel consturction.
- IP67 protection.
- Complete environmental protection.
SPECIFICATION
| STANDARD CAPACITIES | :5,10,15,20,30,45,75,100 |
| EXCITATION VOLATAGE | :10VDC TO 15VDC |
| RATED OUTPUT | :2.0 mv/v |
| INPUT RESISTANCE | :450 +- 2.0 Ohms |
| OUTPUT RESISTANCE | :480 +- 3.0 Ohms |
| CREEP (30 MINUTES) | :<+- 0.03% Fso |
| ZERO BALANCE | :+-1.0% Fso |
| NON-REPEATABILITY | :<+-0.01% Fso |
| HYSTERESIS | :<+-0.02% Fso |
| NON-LINEARITY | :<+-0.25% Fso |
| SAFE OVER LOAD | :150% Of Rated Capacity |
| ULTIMATE OVER LOAD | :300% Of Rated Capacity |
| ALLOWABLE SIDE LOAD | :10% Of Rated Capacity |
| TEMPERATURE EFFECT ON O.P. | :<0.0015% Fso% oC |
| TEMPERATURE EFFECT ON ZERO | :<0.0020% Fso% oC |
| ENVIRONMENTAL PROTECTION | :IP67 |
