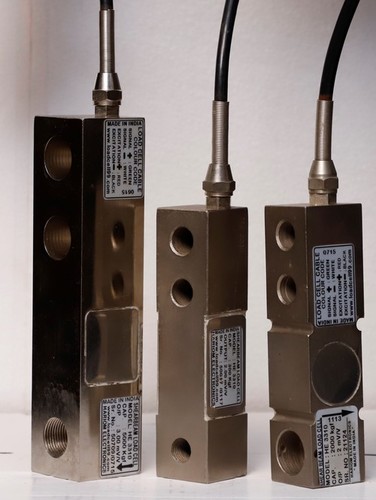

Shear Beam Load Cell

Shear Beam Load Cell
Shear Beam Load Cell
Send Inquiry
Product Code : HE 3310
Brand Name : HARIOM
Product Description

SHEAR BEAM LOAD CELL

Abiding by the ethical standards and norms of the industry, we bring forth a high quality range of Shear Beam Load Cell. It is used in small to medium sized bin and belt scales or filling and sacking systems. Our range of this load cell is designed for the measurement of tensile and comprehensive forces where it forms the bridge between the system framework and the live load. In order to ensure quality, this is stringently tested on various parameters. Our clients can avail this Shear Beam Load Cell at highly competitive prices.

Key Features:

  • Alloy Steel
  • Nickel-plated
  • Welding-sealed
  • Suitable for vehicle scales
  • Track scales & other electronic weighing devices
  • Capacities: 100 KG -20 M.T.
  • (Capacities to be also as per the requirements)
  • Modification in the product are also to be done as per the application Requirements.
  • Low profile for tank, bin and hooper weighing.
  • Electroless nickel plated Alloy Tool Steel Consturction.
  • IP67 protection.
  • Complete environmental protection.

 SPECIFICATION

 STANDARD CAPACITIES

 :100,150,200,250,300,500,750,1T,1.5T,2T,2.5T,3T,5T,7.5T,10T.

EXCITATION VOLATAGE   :10VDC TO 15VDC
RATED OUTPUT
: 2.00 mV/V or 3.00mV/V (As Required)
INPUT RESISTANCE
:392 +- 10 Ohms
OUTPUT RESISTANCE
:350 +- 3.0 Ohms
CREEP (30 MINUTES)
:<+- 0.03% Fso
ZERO BALANCE
:+-1.0% Fso
NON-REPEATABILITY
:<+-0.01% Fso
HYSTERESIS
:<+-0.02% Fso
NON-LINEARITY
:<+-0.25% Fso
SAFE OVER LOAD
:150% Of Rated Capacity
ULTIMATE OVER LOAD
:300% Of Rated Capacity
ALLOWABLE SIDE LOAD
:50% Of Rated Capacity
TEMPERATURE EFFECT ON O.P.
:<0.0015% Fso% oC
TEMPERATURE EFFECT ON ZERO
:<0.0020% Fso% oC
ENVIRONMENTAL PROTECTION
:IP65
