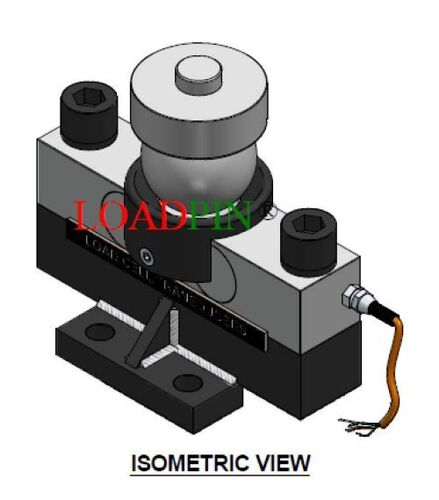

Ball Type Load Cell 30t

Name: Ball Type Load Cell 30t
Brand: HARIOM ELECTRONICS
Price: 8800 INR
Availability: InStock

8800 INR/Piece

Get a Price/Quote

Product Details:

Voltage 110-215 Volt (v)
Operate Method Manual
Usage Industrial
Output Analog Sensor
Theory Inductance Sensor
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Ball Type Load Cell 30t Price And Quantity

Price 8800 INR/Piece
Minimum Order Quantity 12 Piece

Ball Type Load Cell 30t Product Specifications

Theory Inductance Sensor
Operate Method Manual
Output Analog Sensor
Usage Industrial
Voltage 110-215 Volt (v)

Ball Type Load Cell 30t Trade Information

FOB Port Varnama ICD
Payment Terms Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 3000 Piece Per Month
Delivery Time 45 Days
Sample Policy Contact us for information regarding our sample policy
Packaging Details 1 Peice per Box
Main Export Market(s) Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
Main Domestic Market Dadra and Nagar Haveli, West India, Madhya Pradesh, Chandigarh, Arunachal Pradesh, Punjab, East India, Chhattisgarh, Meghalaya, Manipur, Mizoram, North India, Odisha, South India, Tamil Nadu, Andaman and Nicobar Islands, Gujarat, Lakshadweep, Rajasthan, Kerala, Jammu and Kashmir, Uttar Pradesh, Andhra Pradesh, West Bengal, Bihar, Tripura, Karnataka, Sikkim, Goa, Telangana, Central India, Nagaland, Maharashtra, Pondicherry, Himachal Pradesh, Uttarakhand, Haryana, Daman and Diu, Jharkhand, Assam, Delhi, All India
Certifications Ministry MSME's ZED BRONZE Certificate through Quality Council of India.

Product Description

Specification

Application	Weigh bridge
Cable Length	15 meter
Capacity	30 Ton
Combined Error	+-0.02% F.S
Compensated Temperature Range	-10 to +40 Deg C
Creep Error (30 minutes)	< +- 0.03 % FSO
Features	Hardened tool steel construction
Ingress Protection	IP68
Input Resistance	700 +- 10 Ohms
Insulation resistance at 50V DC	>= 1000 M Ohm
Material	Alloy Steel
Maximum Safe Overload	150% FS
Operating Temperatue Range	-30 to +70 Deg C
Output Resistance	700 +- 7 Ohms
Output Sensitivity(FS)	2.0 +/- 0.002 mV/V
Recommended Excitation Voltage	5 to 15V DC
Temperature Effect on Output	+-0.02% F.S
Temperature Effect on Zero	+-0.02% F.S
Zero balance	+/- 1% FS
