Load Cell Load Cell
Load Cell
Load Cell

Load Cell

1500 USD ($)/Piece

Product Details:

  • Operate Method Wheatstone Bridge Principle
  • Application Process Industry
  • Product Type Pancake
  • Power 10 Volt (v)
  • Usage Industrial Automation
  • Color Electroless Nickle Plated
  • Classification Class 3
  • Click to View more
X

Load Cell Price And Quantity

  • 350.00 - 3500.00 USD ($)/Piece
  • 1 Piece
  • 1500 USD ($)/Piece

Load Cell Product Specifications

  • 10 Volt (v)
  • 10 VDC Volt (V)
  • Industrial Automation
  • 2mV/V Volt (V)
  • 0 to 50 Celsius (oC)
  • Class 3
  • -10 to 70 Celsius (oC)
  • Electroless Nickle Plated
  • 0.25 %
  • Alloy Tool Steel
  • Analog Sensor
  • Wheatstone Bridge Principle
  • Process Industry
  • Round Shaped
  • Pancake
  • 0 to 50 Celsius (oC)

Load Cell Trade Information

  • Ex Works
  • Days after Acceptance (DA) Cash Advance (CA) Cheque
  • 100 Piece Per Day
  • 45 Days
  • Contact us for information regarding our sample policy
  • Western Europe Australia North America Eastern Europe Middle East Central America South America Asia Africa
  • All India

Product Description

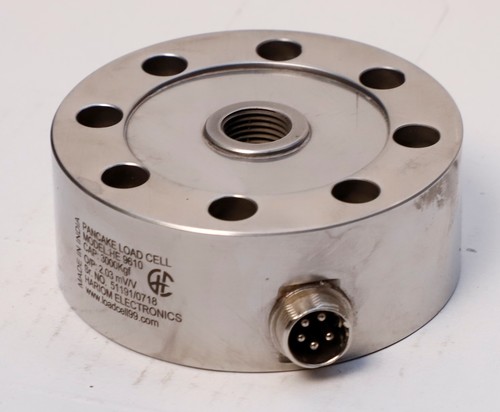

Universal Pancake Load Cell

We are one of the most promising name in the industry that has been indulged in offering a best quality range of which is designed for high capacity compression and tension applications. These load cells are suitable for weighbridge, tank/hopper weighing and typical industrial automation applications. offers high accuracy and can be modified or customized to meet our customers' requirements. Our product is individually tested to its full rated capacity under the supervision of highly trained professionals.

Easy installation

  • Complete Environmental Protection - IP 6
  • Standard output 2.000 mV/V or 3.000mV/V available on request
  • Reasonable price

DESCRIPTION:

  • HE 9610 T PANCAKE UNIVERSAL LOAD CELL ARE SUITABLE FOR WEIGH BRIDGE, TANK, HOPPER WEIGHING & TYPICAL INDUSTRIAL AUTOMATION APPLICATIONS.
  • THE LOAD CELL CONSRUCTED FROM HEAT TREATED ALLOY TOOL STEEL , STAINLESS STEEL 17 4 PH
  • EXSTREAMLY SUITABLE FOR TANK WEIGHING SYSTEMS, SILO, VESSEL WEIGHING, LEVEL MONITORING.
  • MODEL HE 9610 T IS AVAILABLE WITH INTEGRAL THREAD.

APPLICATION :

  • Overhead Weighing Systems
  • Crane Weighing Systems
  • Force Measuring
  • Tension / Compression Testing
  • Load Measurements
  • Suitable for harsh & hygienic Industrial Applications

FEATURES :

  • Complete Environmental Protection - IP 68
  • Standard Output 2.000 mV/V or 3.000mV/V Available on request
  • Easy in Installation.

CUSTOM BUILT DESIGN AVAILABLE ON REQUEST.

 Specification

Application

Overhead Track Scales

Capacity

1000 Kg

Compensated Temperature Range

-10 to +40 Deg C

Ingress Protection

IP68

Material

Alloy Steel

Maximum Safe Overload

150% FS

Output Sensitivity(FS)

2.0 +/- 0.002 mV/V

Recommended Excitation Voltage

5 to 12V DC

Ultimate Safe Overload

200% FS

Zero balance

+/- 1% FS
